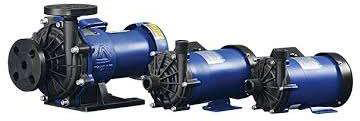

Magnetic Drive Pumps

ADVANTAGEOUS FEATURES :

  • Magnetic Drive ensure 100% leak proof.
  • No shaft seal to wear leak or replace.
  • Friction free operation for reduced power consumption.
  • Easy to maintain – simple centrifugal open impeller design.
  • Long life, reliable and trouble free operation.

APPLICATION :

  • Ideal for transfer of corrosive chemicals acids dyes, solvents, toxic and fuming liquids, petrol, kerosene, water etc.
  • Useful in chemical industries.
  • Pharmaceutical and food processing industries.
  • Textile dying houses.
  • Electroplating plant.
  • Laboratory equipments.
  • Medical equipments.
  • X- ray film plants.
  • Photo processing.
  • Liquid dispensing machine and fountains etc.

SPECIFICATION :

MODEL IN/OUT SIZE CAPACITY (max) HEAD (max) OPERATING VOLTAGE FREQUENCY FULL LOAD CURRENT RPM RATING MOTOR HP PHASE WEIGHT
MDP-15 14 mm 15 LPM 2.5 mtr. 230 50Hz 0.15 Amps 2800 Continuous 0.10 single 3kgs
MDP-30 18mm 30 LPM 3.5 mtr 230 50Hz 0.20 Amps 2800 Continuous 0.16 Single 3.5 kgs
MDP-50 20 mm 50 LPM 4.5mtr 230/415 50Hz 0.30 Amps 2800 Continuous 0.25 Single / Three 5 kgs
MDP-85 26 mm 85 LPM 6.5mtr 230/415 50Hz 0.60 Amps 2800 Continuous 0.5 Single/three 8.5 kgs
MDP-125 26 mm 125 LPM 8.5mtr 230/415 50Hz 0.85 Amps 2800 Continuous 0.75 Single/three 11 kgs
MDP-170 1″ BSP 170 LPM 14 mtr 230/415 50Hz 1.70 Amps 2800 Continuous 1.0 Single/Three 12 kgs
MDP-300 1½” X 1¼” 300 LPM 20 mtr 415 50Hz 2.40 Amps 2800 Continuous 1.5 Three 16 kgs
MDP-400 1 ½” X 1 ¼” 400 LPM 22 mtr 415 50Hz 3.40 Amps 2800 Continuous 2.0 Three 20 kgs
MDP-500 2″X 1½” 500 LPM 30 mtr 415 50Hz 4.70 Amps 2800 Continuous 3.0 Three 30 kgs
MDP-500 2″X 1½” 500 LPM 30 mtr 415 50Hz 4.70 Amps 2800 Continuous 3.0 Three 30 kgs
MDP-650 2 ½” X 2” 650 LPM 34 mtr 415 50Hz 8.50 Amps 2800 Continuous 5.0 Three 40 kgs

Performance chart :

Pump model 1 2 3 4 5 6 ←Head in mtrs
MDP 15 10 5
MDP 30 25 18 12 5     ←capacity in LPM
MDP 50 45 38 30 22 10
Pump model 2 4 6 8 10 12 13 ←Head in mtrs
MDP 85 80 65 42 20
MDP 125 110 95 70 45 25 5   ←capacity in LPM
MDP 170 155 130 100 75 45 20 10
Pump model 5 8 10 12 15 18 20 22 24 26 28 30
MDP  300 250 220 195 160 110 75 15
MDP  500 470 425 385 340 295 250 205 165 125 75 30

DIMENSIONS :

MODEL A B C D E H H1 J K L ØP
MDP-15 40 60 96 116 41 110 55 45 29 225 14
MDP-30 40 60 96 116 41 118 55 48 30 235 18
MDP-50 40 60 96 116 57 127 55 60 35 290 20
MDP-85 55 65 115 142 64 170 81 85 43 305 26
MDP-125 55 65 115 142 66 175 81 105 46 350 26
MDP-170 380 250 100 126 160 80 172   46 50 1”
MDP-300 400 270 100 126 160 85 185   58 57 1 ¼”



MATERIAL OF CONSTRUCTION :

FRONT CASING GF poly propelene , Delrin
IMPELLER GF Poly Propelene , Nylon
IMPELLER MAGNET HOUSING GF Poly propelene , Delrin
CASING CENTRE RING Carbon filled PTFE Bush
PUMP BODY Aluminums casting
MAGNET Permanent rare earth
MOTOR Continuous duty single or three phase motor With class  E insulation and aluminums die cast rotor.
MOTOR BEARING Imported double  Z Ball bearing
MOTOR SHAFT EN. 9 H & G

ABOUT MAGNETIC PUMP :

Magnetic drive design eliminates the conventional of shaft coupling. Hence the pup casing is fully sealed from drive end which gives away the use of conventional sealing system. There is no seal used and hence no troublesome seal repairing and replacement, leakage and production lost. Impeller and drive magnets are permanent rare earth magnets. They prevent slippage and ensure that full motor horsepower is converted into pumping power.
